    MPO MTP OM3 OM4 OM5 Fiber Patch Cord 24 Cores

    Ask Lasest Price
    Brand Name : Neutral/OEM
    Model Number : MPO-LC Patch Cord
    Certification : CE/ROHS/REACH/CPR/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, Paypal
    Supply Ability : 100PCS/Day
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

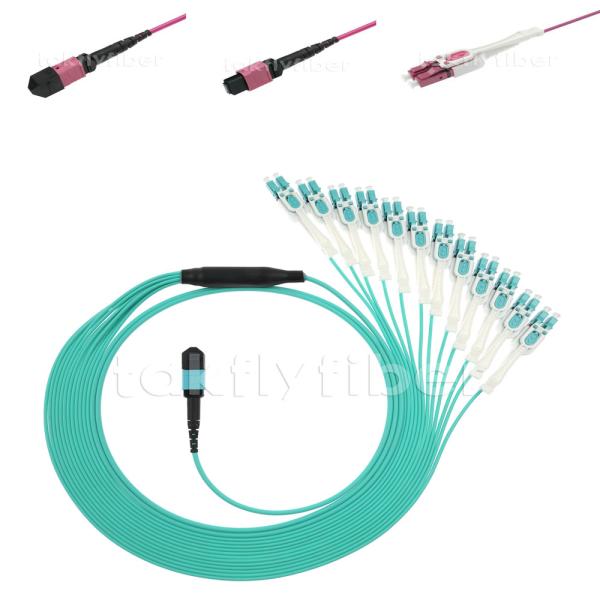

    MPO MTP OM3 OM4 OM5 Fiber Patch Cord 24 Cores

    Fiber Optic Cable 24 Cores MPO MTP OM3 OM4 OM5 Fiber Patch Cord


    Fiber Optic 24 Cores MPO-LC Patch Cord Name:


    Patch Cord MPO-LC Uniboot 24 Cores Multimode OM3


    Fiber Optic 24 Cores MPO-LC Patch Cord Description:

    This MPO-LC Patch Cord is 24 Cores, Multimode OM3 in Aqua color LSZH outsheath.

    Other 8 cores, 12 cores are also available.

    OFNR or OFNP outsheath can be also customized.


    Fiber Optic 24 Cores MPO-LC Patch Cord Features:

    Precision molded MT ferrule
    High precision guide pins for exact alignment
    Compact design, up to 4,8,12,24 fibers
    IEC 61754-7 Compliant
    Cable diameter 3.0mm, and 4.5mm available


    Fiber Optic 24 Cores MPO-LC Patch Cord Applications:

    • Telecommunication Networks
    • Active Deviced/Transceiver Interface
    • Gigabit Ethernet
    • CATV, Video and Multimedia
    • Premise Installations
    • Optical Switch interframe connections
    • Data Center

    Fiber Optic 24 Cores MPO-LC Patch Cord Specifications:

    ItemLC,SC,ST,FC.......MPO/MTP
    End face typePC,UPC and APCPC and APC
    Fiber typeSM(G652,G655,G657);MM(OM1-OM5)
    Core number12, 24
    Cable Diameter0.9,2.0,3.0Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm
    Insertion loss(dB)≤ 0.3Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
    Return loss(Min)

    UPC SM:40dB

    APC SM:60 dB

    PC MM:25 dB

    SM: APC:60dBMM: PC:20dB
    Test Wavelength (nm)SM:1310/1550 MM:850/1300
    Repeatability≤ 0.1dB
    Durability≤ 0.2dB
    Interchangeability≤ 0.2dB
