Indoor Breakout Optical Cable 2000M LSZH/PVC/PU

    Buy cheap Indoor Breakout Optical Cable 2000M LSZH/PVC/PU from wholesalers

    Buy cheap Indoor Breakout Optical Cable 2000M LSZH/PVC/PU from wholesalers
    • Buy cheap Indoor Breakout Optical Cable 2000M LSZH/PVC/PU from wholesalers

    Indoor Breakout Optical Cable 2000M LSZH/PVC/PU

    Ask Lasest Price
    Brand Name : DF/OEM/Nuetral
    Model Number : TK-PC-48F-SC-OS2-50M
    Certification : CE/ROHS/REACH/ISO9001/ISO14001
    Price : negotiable denpend on QTY
    Payment Terms : Western Union, T/T, MoneyGram/Paypal
    Supply Ability : 1000PCS/Day
    Delivery Time : 5-9 working days depends on QTY
    • Product Details
    • Company Profile

    Indoor Breakout Optical Cable 2000M LSZH/PVC/PU

    Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
    Product Description
    4-48 core branch optical cables (900ym compact buffer fiber, aramid yam is a reinforcement element, 2.0mm innelsheath) are used as a subunit A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metastrengthening, the subunit is surround FRP around, the subunit is a PVC or LSZH material sheath, and the last layer olpolyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, fiame retardant jacket.
    Product Applications
    • Optical fiber active connection jumper or tail fiber
    • Indoor shaft stage and forced ventilation level wiring;
    • Interconnection of instruments and communication equipment
    Product Features
    • Adopt a tight sleeve optical fiber for easy stripping;
    • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
    • Good performance of flame-retardant,low induced attenuation within the operating temperature range.
    • Meet various requirements of market and clients
    Optical Parameter and Properties
    Optical fiber typeTest wavelengthDecayFull injection bandwidth (MHZ.km)Effective modal bandwidth (MHZ.km)Minimum bending radius(mm)
    Typical (dB/km)Maximum (dB/km)
    G652D1310/1550nm0.36/0.220.5/0.4......16
    G657A10.36/0.220.5/0.4......10
    G657A20.36/0.220.5/0.4......7.5
    62.5/125850/1300nm3.0/1.03.5/1.5≥200/500...30
    50/1253.0/1.03.5/1.5≥500/500...30
    OM33.0/1.03.5/1.5≥1500/500≥2000/...7.5
    OM43.0/1.03.5/1.5≥3500/500≥4700/...7.5
    OM5850/953nm/1300nm3.0/.../1.03.5/.../1.5≥3500/1850/500≥4700/2470/...7.5

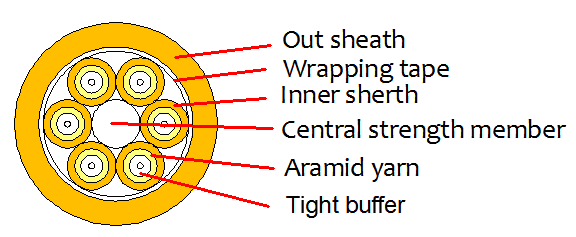

    Product Structure
    Product Picture
    Why choose TAKFLY?
    Professional manufacturer:
    • With more than 25 years manufacturing experience in Fiber optic products
    • More than 450 assembly workers with 3 years experienced
    • More than 10 R&D Engineers
    • 16 Sets Germany imported Injection Machine and 16 Production Lines
    • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
    • OEM Brand is acceptable
    • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
    Quality Control:
    • Spot check the raw material incoming inspection before production
    • Fully check after every individual process finished
    • Fully check production half done
    • Fully check the finished products before packing
    • Spot check before shipping
    Delivery:
    • Samples: 1-3 working days
    • Mass Production Order: 3-7 working days
    • Packaging: Plastic Bag, Carton and Pallet are available according to your request
