    Takfly FC-FC Duplex Fiber Patch Cord 2m 62.5/125um 3.0mm

    Ask Lasest Price
    Certification : RoHS, CE, ISO9001, VDE, CCC
    Price : 0.6
    Brand Name : Takfly
    Payment Terms : T/T,L/C,MoneyGram,Western Union
    Supply Ability : 5000 pcs/day
    Delivery Time : 2-15 working days, depends on quantity
    • Product Details
    • Company Profile

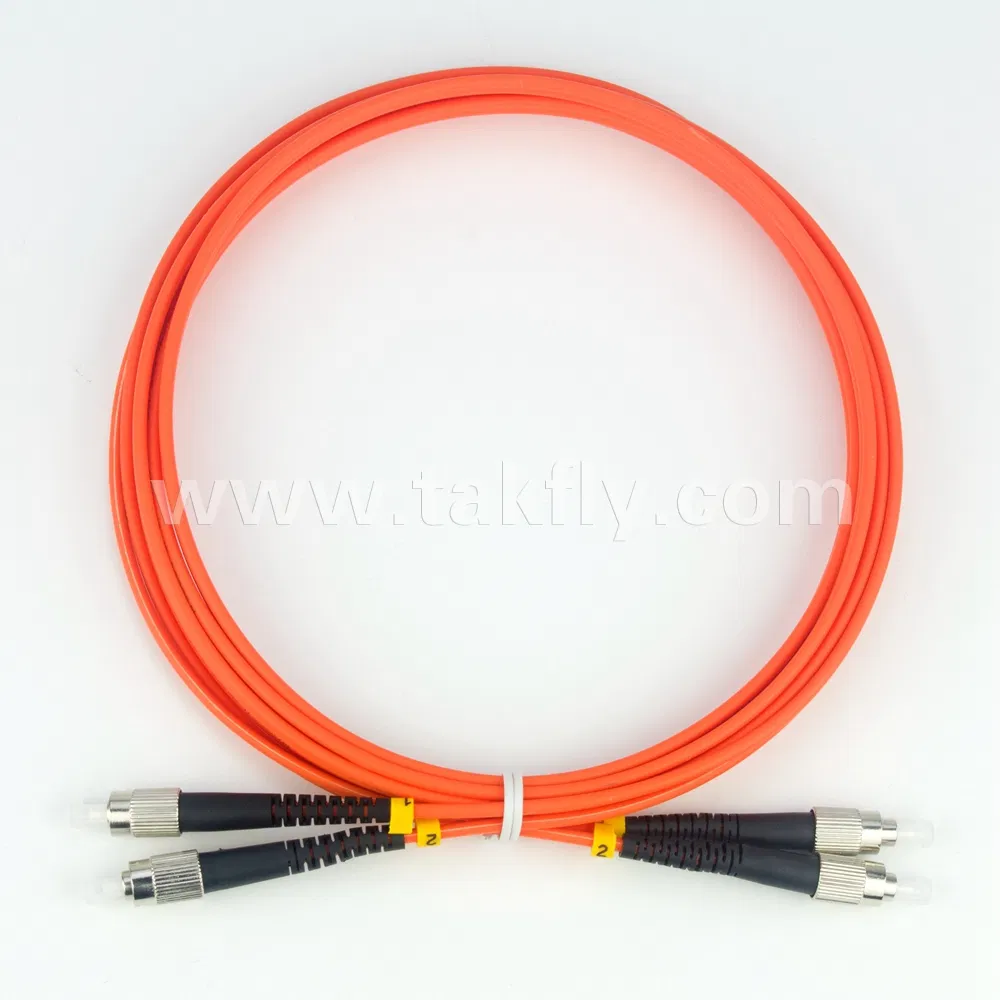

    Takfly FC-FC Duplex Fiber Patch Cord 2m 62.5/125um 3.0mm

    FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord





    Optical Fiber Connector can provide a quick and easy termination of fibers in
    the field. Options are available for 900 micron allowing the installer to terminate
    and make connection in minutes at equipment and fiber patch panels. Our quick
    connector system removes any requirement for epoxy, adhesives or costly curing
    ovens.All the key steps have been done in the factory to ensure every connection
    is excellent.High quality but low price because we bring these in direct from the


    Feature
    1).Low insertion loss
    2).High return loss (low amounts of reflection at the interface)
    3).Ease of installation
    4).Low cost
    5).Reliability
    6).Low environmental sensitivity
    7).Ease of use

    Application
    1).CATV
    2).Active device termination
    3).Telecommunication networks
    4).Metro
    5).Local Area Networks (LANs)
    6).Data processing networks
    7).Test equipment
    8).Premise installation
    9).Wide Area Networks(WANs)

    Specification



    Singemode(UPC)

    Singemode(APC)

    Multimode

    Insertion loss

    ≤ 0.2db

    ≤ 0.2db

    ≤ 0.25db

    Return loss

    ≥55db

    ≥65db

    ≥30db

    Durability

    ≤ 0.1db typical change, 1000 times mating

    Operating Temperature

    -45 to +85 degree






    Ferrule Hole Sizes

    125.0+1/-0um, Concertricity: ≤1.0um

    125.0+1/-0um, Concertricity: ≤0.5um

    125.0um, Concertricity: ≤3.0um

    125.3+1/-0um, Concertricity: ≤1.0um

    125.3+1/-0um, Concertricity: ≤0.5um

    127.0um, Concertricity: ≤3.0um

    125.5+1/-0um, Concertricity: ≤1.0um

    125.5+1/-0um, Concertricity: ≤0.5um

    128.0um, Concertricity: ≤3.0um

    126.0+1/-0um, Concertricity: ≤1.0um

    126.0+1/-0um, Concertricity: ≤0.5um



    Product list

    Item
    Connector DescriptionItemConnector Description
     PC/UPC/APC PC/UPC/APC
    Connector Singlemode 9/125STConnector Multimode (50/125 or 62.5/125)ST
    SCSC
    FCFC
    LCLC
    MUMU
    MTRJ(female)MTRJ(female)
    MTRJ(male)MTRJ(male)
    DINE2000
    E2000


    FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord

    FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord



    FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord
    FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord
    FC/PC-FC/PC Duplex 62.5/125um 3.0mm 2m Fiber Patch Cord
